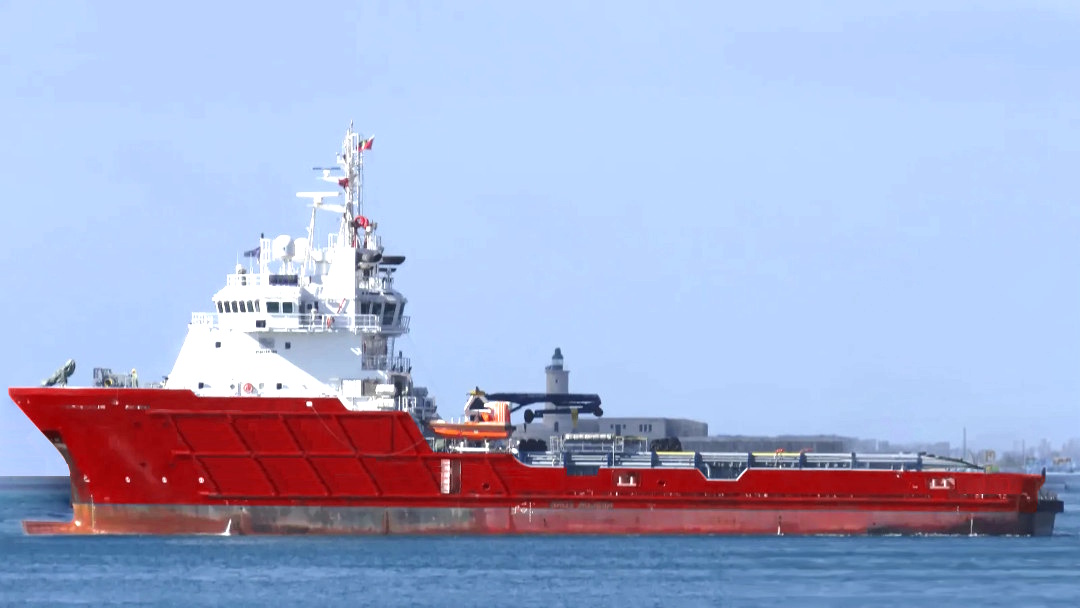

72M DP2 PLATFORM SUPPLY VESSEL FOR CHARTER
72M DP2 PLATFORM SUPPLY VESSEL FOR CHARTER
General Particular
Year Built sep 2011
Flag Indonesia
LOA 72M
Breadth 16M
Max Draft 6.2M
GT 2595
Lightship 780
DEAD WEIGHT 3000
DP Class DP2 CONVERTEAM
Class RINA
Machinery & Propultion Details
Total BHP 5500 BHP
Main Engine
Schottel 2 x GE 12 V 228 MDD11
AUX Engine MAN 2 x D284LE01,590 KW Alternator 2 x LSAM 49.1 M6
Emergency Generator MAN D2866 LXE20, 120 KW Alternator
LSAM 44.2M95C 6/4
Bow Thruster Number and KW 3 x SCHOTTEL 550 KW
Azimuth Thruster (if applicable and KW) 2 x SCHOTTEL 2050 KW
Propeller Type Azimuth
Cargo Capacities
Max Clear Deck Space m2 600 SQM
Max Clear Deck Length and Breadth (mxm) 43.2 M x 13.0 M
Deck Strength 5 T / SQM
Max Deck Cargo (tonnes) 1000 T
Electrical points on deck for refrigerated containers 6 x 440 V / 60 hz
Fuel Oil m3 583 CU.M
Potable Water m3 710 CU.M
Drill Water m3 442 CU.M
Brine / Mud Tanks m3 348 CU.M
Liquid Mud loaded and discharged via dedicated lines YES
Self cleaning Liquid Mud tanks YES
Circulation system for Liquid Mud so as to prevent settling settling Circulation and agitator
Dry Bulk 300 CU.M
Number of Dry Bulk Tanks 6
Pumps
Fuel Oil 2 x 150 CU.M/HR @ 8 BAR
Fresh Water 2 x 100 CU.M/HR @ 8 BAR
SWB/Drill Water 2 x 100 CU.M/HR @ 8 BAR
Liquid Mud/Brine 2 x 80 CU.M/HR @ 18 BAR
Bilge/Fire Pump 1 x 100 CU.M/HR @ 6 BAR
GS Fire Pump 1 x 100 CU.M/HR @ 6 BAR
Bulk Cement 80 CU.M/HR @ 5.6 BAR
Fire Fighting Equipment
Firefighting – 1/2/3/ Portable Pack (please state) FIFI CLASS 1
Fire Pumps 2 x 1660 CU.M / HR @ 12 BAR
Monitors – Water/Foam 2 x 1200 CU.M / HR
Foam/Detergent YES
Emergency Fire Pump 35 VU.M / HR @ 4.5 BAR
Speed
max /Consumption/Hour Abt 10 knts /552 Liter/H
economical/Consumption/Hour Abt 7.5 knts /529 Liter/H
Fuel MGO as per ISO 8217 DMX+ DMA
Deck Equipment
Anchor Windlass 2 x 10t 9m/min
Anchors 2 x 1930 KG + 1 spare
Capstan 2 x 5 T
Tugger Winch (number/capacity/rating) 2 x 10 T
Crane 5 T SWL @ 12 m
Freezer/Chiller 25 m3 @ -18 deg C / 25 m3 @ +4 deg C
Oil Spill Response
Dispersant Capacity (gallons) 10.8 CU.M
Oil Dispersant System YES
Rescue and Recovery
FRC/Heave compensated on load release Davit Fassmer, FRR 6.5 ID-SF
Life rafts 4 x for 25 persons each
LSA COMPLY AS PER SOLAS
Accommodation
Total Berths 76
NAVIGATION
Search Light 2 unit 230 V / 2000 W
Magnetic Compass 2 unit 220-240 V/ 400 W
Gyro Compass 3 unit Anschutz
GPS 1 unit Furuno GP 150
GPS Antena 1 unit Furuno GPA 0198
Echo Sounder 1 unit FE701
SSB Radio 1 unit Furuno FS-2571 C
EPIRB 1 unit MC Murdo
Radar 2 unit Furuno (S & X Band)
Public Adressor 1 Set Jotron
Inmarsat Receiver 2 Set Felcom 15
Navtec Receiver 1 unit NX-700B
AIS 1 Set FA 150
GMDSS 1 Set RC-1800T
DP CONSOLE 2 Set Duplex DP+IJS
AUTOPILOT 1 Set Pilotstar D
