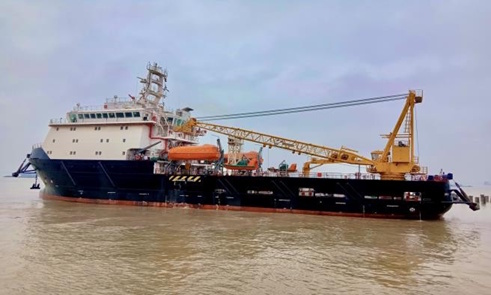

DP2 80M MAINTENANCE WORK VESSEL for Sale

Description

DP2 80M MAINTENANCE WORK VESSEL for Sale

Class:

ABS : A1 Offshore Support Vessel, AMS, ACCU, DPS-2, FFV1, SPS,BWT, CRC, UWILD

BUILD

YEAR : 2020
BUILDER : China
CLASS : ABS
FLAG : Brunei Darussalam
PORT OF REGISTRY : Muara

DIMENSIONS

LENGTH OVERALL : 80m
BREADTH MOULDED : 20m
DEPTH MOULD : 8m
DESIGN DRAFT : 6m
GROSS TONNAGE : 5217Ton
NET TONNAGE : 1565 Ton

ACCOMMODATIONS

Total: 200P

( 1 MEN ROOM x 10 / 2 MEN ROOM x 13 & 4 MEN ROOM x 41 )
LIFEBOAT : 2 X 100 men totally enclosed Lifeboat
RESCUE BOAT : 2 X Rescue Boat
IMDG CODE : Complied STRENGTH OF MAIN DECK : 10 T/M² CLEAR DECK SPACE : 820 m²
DAVIT CRANE : SCM China SWL 3Ton @ 12m
DECK CRANE : SCM China SWL 70MT Model YQHG 3150-70T-13M

MACHINERY

DYNAMIC POSITION SYS (DP2) : KONGSBERG K POS DP-21 C/W 3 IDP Position Reference System
MAIN ENGINES : 2 X 1471 KW NIIGATA 6L26HLX, 750 rpm
DIESEL GENERATOR : 2 X CAT C32 940KW + 2 X CAT C18 550KW
SHAFT GENERATOR / PTI : 2 X 900 KW / Input Power 900KW via PTI on HYBRID Configuration
BOW THRUSTER : 2 X KAWASAKI KT-88B3
Tunnel Thruster, 800KW Electrical Motors
EMERGENCY GENSET : 1 X 150 KW CATERPILLAR C9
PROPELLERS : 2 X Z-Drive, 360 Degrees, Azimuth Propellers
EXTERNAL FIRE PUMP : 2 X FFS 1200 M³/ hr
ANTIROLL : 2 X Flume Antiroll Stabilization
Tank OILY WATER SEPARATOR : 1 X RWO Marine Water Technology
SEWAGE TREATMENT PLANT : 1 X Detegasa Biological Sewage Treatment System
FUEL OIL TRANSFER PUMP : 1 X 120M³/hr X 60m
FRESH WATER PUMP : 1 X 120M³/hr X 60m
BILGE / BALLAST PUMP : 2 X 120M³/hr X 90m
WATER MAKER : 2 X 40Mton (Reverse Osmosis)
