Description

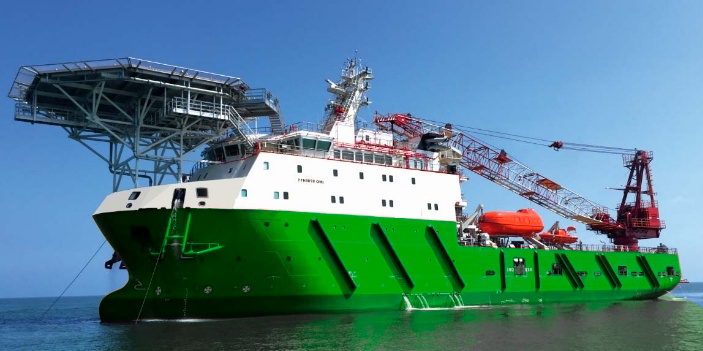

DP2 85M MAINTENANCE WORKING VESSEL for Sale
DP2 85M MAINTENANCE WORKING VESSEL for Sale
CLASS:
ABS : A1 Offshore Support Vessel, AMS, ACCU, DPS-2, FFV2, SPS,BWT, CRC,, MLC-Accom, UWILD, HELIDK
BUILD:
YEAR : 2015
BUILDER : China
CLASS : ABS
FLAG : Brunei Darussalam
PORT OF REGISTRY : Muara
DIMENSIONS:
LENGTH OVERALL : 85m
BREADTH MOULDED : 23m
DEPTH MOULD : 8m
DESIGN DRAFT : 6.2m
GROSS TONNAGE : 6368Ton
Accommodation:
ACCOMMODATE : 239 men
LIFEBOAT : 2 X 150 men totally enclosed Lifeboat
RESCUE BOAT : 2 X Rescue Boa
IMDG CODE : Complied STRENGTH OF MAIN DECK : 10 T/M² CLEAR DECK SPACE : 900m²
DAVIT CRANE : Zhenjing DH Marine 3T SWL
DECK CRANE : Favelle Favco 80MT Model 15/10K
HELIDEK : 22.2 M Meet CAP.437 S61/S92 MOM 12.8 Tons
MACHINERY
MAIN ENGINES : 2 X 2206 KW NIIGATA 6L28AHX, 750 rpm
DIESEL GENERATOR : 4 X 748 KW CATERPILLAR C32 + ABB, AMG 0400EE04
SHAFT GENERATOR : 2 X 1000 KW LEROY SOMER
BOW THRUSTER : 3 X STT3CP
Tunnel Thruster, 780KW Electrical Motors
EMERGENCY GENSET : 1 X 215 KW CATERPILLAR C9
PROPELLERS : 2 X Z-Drive, 360 Degrees, Azimuth Propellers
ANTIROLL : 2 X Flume Antiroll Stabilization
Tank OILY WATER SEPARATOR : 1 unit
SEWAGE TREATMENT PLANT : 1 unit
FUEL OIL TRANSFER PUMP : 1 X 120M³/hr X 60m
FRESH WATER PUMP : 1 X 120M³/hr X 60m
BILGE / BALLAST PUMP : 2 X 150M³/hr X 100m
WATER MAKER : 2 X 60Mton (Reverse Osmosis)
DYNAMIC POSITIONING SYSTEM : 1 X MT DP2 SYSTEM (CLASS II)
PERFORMANCE
SERVICE SPEED : 12 knots
CAPACITIES
FUEL OIL : 1700m³
FRESH WATER : 1050m³
BALLAST WATER : 2500M³
DIRTY OIL : 15M³
DRILL WATER : 2150M³
WINDLASS & MOORING
WINDLASS : 2 X 15 tons
MOORING WINCH : 4 point mooring system 40 T
ANCHOR & WIRE : 7 ton & 42mm X 1500m
CAPSTAN : 2 X 10 tons
TUGGER WINCH : 2 X 10 tons
